Installation et utilisationLes raccords en laiton du passage sont en cuivre, des clapets anti-retour construits, une conception de joints unique et la sélection de matériaux en caoutchouc dans les clapiers à contre-courant, de sorte que le produit est adapté à des conditions de travail plus graves et à des conditions plus strictes. Cinq structures conçues spécifiquement pour le système transformateur de pression constante seront également très intégrées par les capteurs de pression, les réservoirs de pression, les manomètres pour rendre l'installation plus pratique et le système est plus propre. Compliance complète aux normes élevées et aux exigences de sécurité environnementale dans des pays tels que ELL et les États-Unis, élimine les craintes des utilisateurs concernant la sécurité et la santé et possède un potentiel unique dans les systèmes de survie.

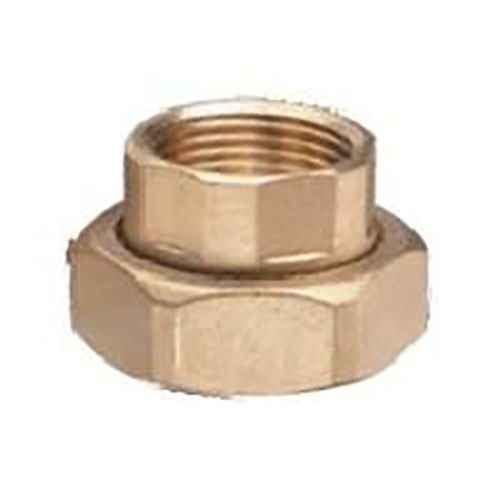

| Union directe (FF) | ||||||
| Modèle | A | B | SW1 | SW2 | L | Masse (gramme) |
| F-C3011 | F 1 ½ " | F ¾ " | 52 | 31 | 32 | 155 |
| F 1 ½ " | F 1 " | 52 | 37 | 36 | 165 | |
| F 2 " | F 1-¼ " | 63 | 46 | 30 | 241 | |
| Union directe (MF) | |||||
| Modèle | A | B | SW1 | L | Masse (gramme) |
| F-C3012 | F 1 " | M ½ " | 36.5 | 34 | 85 |
| F 1 " | M ¾ " | 36.5 | 41 | 105 | |
| F 1 ½ " | M 1 " | 52 | 34 | 175 | |
| Union directe (MM) | ||||||
| Modèle | A | B | SW1 | SW2 | L | Masse (gramme) |
| F-C3013 | M 1 " | M 1 " | 36 | 37 | 48.5 | 150 |
| M 1 " | M 1-¼ " | 36 | 42 | 48.5 | 180 | |
| Nippel tuyau (f) | ||||||
| Modèle | A | B | C | L2 | L | Masse (gramme) |
| F-C3014 | F ½ " | 8 | 12.5 | 23 | 38 | 35 |
| F ½ " | 9 | 12.5 | 23 | 38 | 36 | |
| F ½ " | 10 | 12.5 | 23 | 38 | 37 | |
| F ½ " | 12 | 12.5 | 23 | 38 | 38 | |
| F ½ " | 14 | 12.5 | 23 | 38 | 39 | |
| F ½ " | 16 | 12.5 | 23 | 38 | 42 | |
| F ½ " | 18 | 12.5 | 23 | 38 | 44 | |
| F ½ " | 20 | 12.5 | 23 | 38 | 48 | |
| F ¾ " | 14 | 14 | 23 | 39.5 | 57 | |
| F ¾ " | 16 | 14 | 23 | 39.5 | 58 | |
| F ¾ " | 18 | 14 | 23 | 39.5 | 59 | |
| F ¾ " | 20 | 14 | 23 | 39.5 | 71 | |
| F ¾ " | 25 | 14 | 23 | 39.5 | 78 | |
| F1 " | 20 | 15 | 23 | 41 | 94 | |
| F1 " | 25 | 15 | 23 | 41 | 94 | |
| F1 ¼ ” | 32 | 16 | 33 | 52 | 159 | |
| F1-½ ” | 40 | 15.5 | 44.5 | 63 | 213 | |
| F2 " | 50 | 20 | 55.5 | 75.5 | 372 | |
| Nippel tuyau (M) | ||||||
| Modèle | A | B | L1 | L2 | L | Masse (gramme) |
| F-C3015 | M ¼ " | 10 | 10 | 23 | 38 | 20 |
| M ¼ " | 12 | 10 | 23 | 38 | 22 | |
| M ¼ " | 14 | 10 | 23 | 38 | 23 | |
| M ½ " | 8 | 11 | 23 | 40 | 28 | |
| M ½ " | 9 | 11 | 23 | 40 | 32 | |
| M ½ " | 10 | 11 | 23 | 40 | 32 | |
| M ½ " | 12 | 11 | 23 | 40 | 32 | |
| M ½ " | 14 | 11 | 23 | 40 | 34 | |
| M ½ " | 16 | 11 | 23 | 40 | 37 | |
| M ½ " | 18 | 11 | 23 | 40 | 40 | |
| M ½ " | 20 | 11 | 23 | 40 | 43 | |
| M ¾ " | 14 | 11 | 23 | 40 | 48 | |
| M ¾ " | 16 | 11 | 23 | 40 | 49 | |
| M ¾ " | 18 | 11 | 23 | 40 | 54 | |
| M ¾ " | 20 | 11 | 23 | 40 | 55 | |
| M ¾ " | 25 | 11 | 23 | 40 | 61 | |
| M 1 " | 20 | 15 | 23 | 45 | 89 | |
| M 1 " | 25 | 15 | 23 | 45 | 90 | |
| M 1 " | 32 | 15 | 23 | 45 | 112 | |
| M 1-¼ " | 25 | 15 | 23 | 45 | 130 | |
| M 1 ½ " | 40 | 19 | 44.5 | 69.5 | 255 | |
| M 2 " | 50 | 21 | 55.5 | 82.5 | 396 | |
| Bouchons |
|||||
| Modèle | A | B | L1 | L2 | L |
| F-C3016 | M ¼ " | M ⅜ " | 7.5 | 9 | 21 |
| M ¼ " | M ½ " | 7.5 | 11 | 23 | |
| M ⅜ " | M ½ " | 9 | 11 | 24.5 | |
| M ⅜ " | M ¾ " | 9 | 12.5 | 26.5 | |
| M ½ " | M ¾ " | 11.5 | 12.5 | 29 | |
| M ½ " | M 1 " | 11.5 | 14 | 30 | |
| M ¾ " | M 1 " | 12 | 14 | 31 | |
| M ½ " | M 1-¼ " | 11.5 | 16 | 33 | |
| M ¾ " | M 1-¼ " | 13 | 16 | 34.5 | |
| M 1 " | M 1-¼ " | 13.5 | 16 | 35 | |
| M ½ " | M 1 ½ " | 11.5 | 16.5 | 33.5 | |
| M ¾ " | M 1 ½ " | 13 | 16.5 | 35 | |
| M 1 " | M 1 ½ " | 13 | 16.5 | 35 | |
| M 1-¼ " | M 1 ½ " | 16 | 16.5 | 38 | |
| M ¾ " | M 2 " | 13 | 20 | 39 | |
| M 1 " | M 2 " | 14 | 20 | 40 | |
| M 1-¼ " | M 2 " | 16 | 20 | 42 | |
| M 1 ½ " | M 2 " | 16.5 | 20 | 42.5 | |
| M 2 " | M 2 འ" | 20 | 25 | 54 | |
| M 2 " | M 3 " | 20 | 27 | 57 | |
| M 2 འ" | M 3 " | 27 | 25 | 62 | |
| Bouchons |
||||
| Modèle | Taille | A | B | L |
| F-C3017 | ⅛ " | M ⅛ " | 7 | 14 |
| ¼ " | M ¼ " | 7 | 14 | |
| ⅜ " | M ⅜ " | 7 | 14 | |
| ½ " | M ½ " | 9 | 17 | |
| ¾ " | M ¾ " | 11 | 19.5 | |
| 1 " | M 1 " | 11.5 | 21.5 | |
| 1-4 " | M1-¼ " | 12.5 | 25.5 | |
| 1 འ" | M1-½ " | 13 | 28.5 | |
| 2 " | M 2 " | 17 | 34.5 | |
| 2-4 " | M2-¼ | 18.5 | 36 | |
| 2 འ" | M2-½ " | 20 | 39.5 | |
| 3 " | M 3 " | 24 | 46.5 | |
| 4 " | M 4 " | 28 | 55.5 | |
| Égal droit (mf) | |||||
| Modèle | A | B | L1 | L2 | L |
| F-C3018 | ¼ " | M ¼ " | 8 | 9 | 18.5 |
| ⅜ " | M ⅜ " | 8.5 | 9 | 18 | |
| ½ " | M ½ " | 10.5 | 11 | 22.5 | |
| ¾ " | M ¾ " | 12 | 12.5 | 26.5 | |
| 1 " | M 1 " | 13 | 15 | 30.5 | |
| 1-4 " | M1-¼ " | 15 | 16 | 33 | |
| 1 འ" | M1-½ " | 15.5 | 17 | 35 | |
| 2 " | M 2 " | 19.5 | 20 | 42.5 | |
| Réduire droit (MF) | |||||
| Modèle | A | B | L1 | L2 | L |
| F-C3019 | M ¼ " | M ⅜ " | 8 | 10 | 20 |
| M ¼ " | M ½ " | 8 | 11 | 21 | |
| M ⅜ " | M ¼ " | 8.5 | 9 | 19 | |
| M ⅜ " | M ½ " | 8.5 | 11 | 21.5 | |
| M ½ " | M ⅜ " | 11 | 8.5 | 21.5 | |
| M ½ " | M ¾ " | 11 | 12 | 25 | |
| M ½ " | M 1 " | 11 | 15 | 28 | |
| M ½ " | M1-¼ " | 11 | 16 | 30 | |
| M ¾ " | M ½ " | 12 | 11 | 24 | |
| M ¾ " | M 1 " | 12 | 14.5 | 29 | |
| M ¾ " | M1-¼ " | 12 | 16 | 31 | |
| M 1 " | M ¾ " | 13 | 12 | 27 | |
| M 1 " | M1-¼ " | 13 | 16 | 32 | |
| M 1 " | M1-½ " | 13 | 17 | 34 | |
| M 1 " | M 2 " | 13 | 19.5 | 38 | |
| M 1-¼ " | M1-½ " | 16 | 17 | 36 | |
| M 1-¼ " | M 2 " | 16 | 19.5 | 40 | |
| M 1 ½ " | M 2 " | 17 | 19.5 | 40.5 | |
| M 2 " | M1-½ " | 19 | 17 | 34 | |
| M 2 " | M2-½ " | 19 | 25.5 | 19 | |
| Un mamelon égal | ||||
| Modèle | Taille | A | L | L |
| F-C3020 | ⅛ " | M ⅛ " | 8 | 19.5 |
| ¼ " | M ¼ " | 8.5 | 21 | |
| ⅜ " | M ⅜ " | 9 | 22.5 | |
| ½ " | M ½ " | 10.5 | 25.5 | |
| ¾ " | M ¾ " | 12 | 29 | |
| 1 " | M 1 " | 13 | 31.5 | |
| 1-4 " | M1-¼ " | 15 | 35.5 | |
| 1 འ" | M1-½ " | 16.5 | 39 | |
| 2 " | M 2 " | 19 | 45 | |
| 2 འ" | M2-½ " | 25 | 58 | |
| 3 " | M3 | 27 | 63 | |
| 4 " | M4 " | 35 | 81 | |
